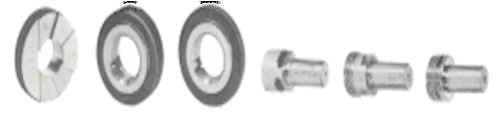

PIPE THREAD GAGES

TAPER PIPE THREAD GAGES

SIZE NPT NPTF-ANPT PLUGS HANDLES
PLUG GAGE BASIC NPTF L-1 or L-3 3-STEP NPTF L-1 or L-3 6-STEP PLAIN NPTF SIZE Price Each
1/16-27 74.50  98.50 115.25 141.75 1 9.75
1/8-27  47.00  66.00 87.75 151.25 2 9.75
1/4-18 53.00 79.25   97.25 151.25 3 9.75
3/8-18  61.25  92.50   107.00 150.00 3 9.75
1/2-14 68.50  108.00 129.75 150.00 4 11.00
3/4-14  79.25 120.00 141.75 150.00 4 11.00
1-11 1/2  87.75 134.50 166.25 158.50 5 11.00
1 1/4- 11 1/2 96.00 151.25 173.00 170.50 5 11.00
1 1/2- 11 1/2  109.25 173.00 189.75 194.50 5 11.00
2-11 1/2 132.00 201.75 228.00 271.25 5 11.00
2 1/2-8 158.50 276.00 311.00 413.75 6 15.75
3-8 204.00 337.25 375.75 438.00 6 15.75
3 1/2-8 355.25 QUOTED ON REQUEST 7 15.75
4-8 405.75 7 15.75
5-8 530.50 7 15.75
6-8 605.00 7 15.75
