< Gage Pipe Plugs- Internal & External

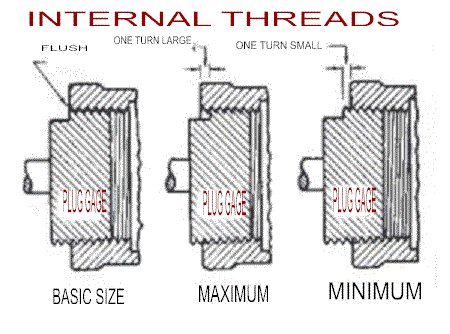

internal
For gaging internal internal taper threads, the plug gage is screwed up tight by hand into the internal thread of the product. The thread is within the permissible tolerance when the gaging notch of the working plug gage is not more than 1 turn, large or small, from being flush with the end of the thread.

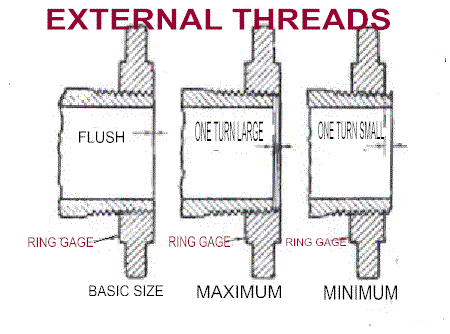

external
In gaging external taper threads, the ring gage is screwed up tight by hand on external thread of product. The thread is within the permissible tolerance when the gaging face of the working ring gage is not more than 1 turn, large or small, from being flush with the end of the thread.
